Steel structure
The greenhouse frame and service-building structure.
Included€482,500$561,047
GrowPro Plus · Hydroponic
Plus
4 acres
Approximately 16,000 m² greenhouseApproximately 172,000 sq ft greenhouseApproximately 17,950 square metres in total, including the service building.Approximately 193,000 square feet in total, including the service building.
Commercial modern standard, full specification.
Starting price · greenhouse supply €1,697,500$1,973,837See what’s included ↗
Build my projectSpecific requirements?Let’s talk custom projects
Know the space.
Plan the operation.

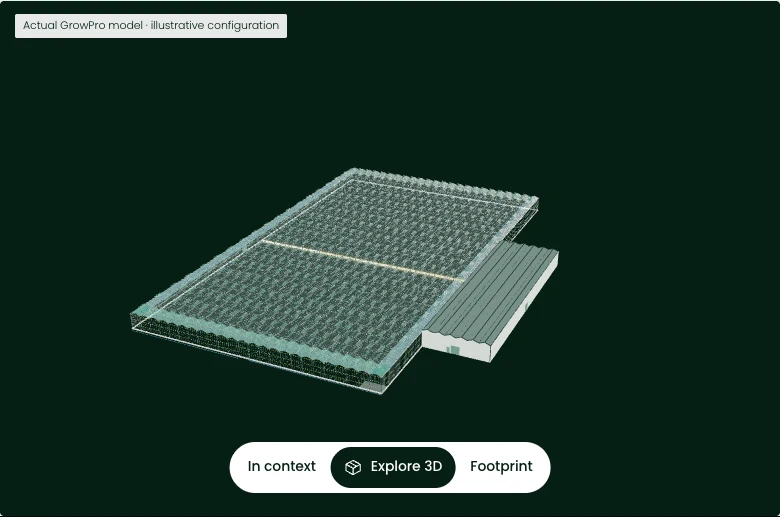

GrowPro Plus · DG-GPP-400ACFootprint study
Proportional footprint diagram. Service-building position is illustrative. Final layout follows project engineering.
View all technical dimensions +
- Growing area
- 15,984 m²172,050 sq ft
- Greenhouse width
- 96.0 m315 ft
- Greenhouse length
- 166.5 m546 ft 3 in
- Column height
- 6.0 m19 ft 8 in
- Ridge height
- 7.09 m23 ft 3 in
- Service width
- 24.0 m78 ft 9 in
- Service length
- 81.0 m265 ft 9 in
- Service area
- 1,944 m²20,925 sq ft
- Total covered area
- 17,928 m²192,975 sq ft
- Bay spacing
- 4.5 m14 ft 9 in
- Truss span
- 8.0 m26 ft 3 in
- Number of screens
- 2
- Cultivation
- Hydroponic
- Model code
- DG-GPP-400AC
Cross-section
What the structure is
12 truss spans of 8.00 m across a length of 37 bays. Every figure on this page derives from those two counts.
Dimensions & specifications
Measured, not estimated
| Greenhouse | MetricImperial |
|---|---|
| Length | 166.5 m546 ft 3 in |
| Width | 96.0 m315 ft |
| Area | 15,984 m²172,050 sq ft |
| Gutter height | 6.0 m19 ft 8 in |
| Ridge height | 7.09 m23 ft 3 in |
| Number of screens | 2 |
| Service building | MetricImperial |
|---|---|
| Length | 81.0 m265 ft 9 in |
| Width | 24.0 m78 ft 9 in |
| Area | 1,944 m²20,925 sq ft |
| Total covered | 17,928 m²192,975 sq ft |
Included in
your core & shell.
The greenhouse and service building, ready for your choice of growing equipment.
Greenhouse supply · starting from €1,697,500$1,973,837
Aluminium glazing system
Profiles, gutters and fittings for the greenhouse.
Included€470,000$546,512
Roof ventilation
Opening roof vents and their drive mechanisms.
Included€60,000$69,767
Roof glass and walls
Greenhouse glazing and service-building panels.
Included€477,500$555,233
Screen installation
An energy screen in every range, with a second screen in Plus.
Included€177,500$206,395
Rainwater discharge
Downpipes and collectors to take rainwater away from the roof.
Included€12,500$14,535
Standard doors
Access to the greenhouse and service building.
Included€17,500$20,349
Steel, aluminium, roof glass and walls, ventilation, screens, rainwater discharge and standard doors. Service-building shell included. Ex works. Growing equipment, freight, foundations, installation, taxes and duties are excluded. The price applies to the stated standard supply scope. Site-specific changes are quoted separately. USD is a conversion of the EUR price.
Choose your growing equipment ↗From a possibility to a plan
Take your greenhouse
to the next conversation.
Keep a project overview for your partners and advisers, with a private link to return to your choices.
- Model overview and saved choices
- Your private project link by email
Your GrowPro project
A greenhouse.
Built around your crop.
Choose your crop, find your greenhouse and build a budget around your plans.
Specific requirements?Let’s talk custom projects
What would you like to grow?
Choose the crop you plan to produce.
Growing lettuce, herbs or another crop? We’ll help you choose the growing system.
Where will the crop grow?
Find your plot on the map. The location helps us plan the right growing environment.
Search uses OpenStreetMap. A search result is not a confirmed plot.
Loads OpenStreetMap tiles. Coordinates can also be entered below.
Your exact plot stays in the private brief. You decide whether to include it in a shared version.
Plan for your local climate.
Your local weather and growing season help determine heating, cooling and light.
Climate planningA growing environment.
A growing environment.
Shaped around your site.
Together, we’ll match heating, cooling and moisture control to your crop and growing season. We’ll check the design for your location before the final quotation.
Explore your greenhouse and build a starting budget. Your site details stay with the project, ready for our team to fine-tune the equipment with you.
Why a climate review matters
Cold periods, heat, humidity, light, water and power can change the equipment needed. A greenhouse in a hot, humid location needs a different climate system from one with cold winters.
Choose your growing space.
Choose the growing area that fits your plans. Every model includes a service building.
Need another size? Let’s talk custom projects.
Bring the growing systems together.
Choose the growing equipment for your crop.
Make the systems work together.
Connect the equipment that keeps the greenhouse running.
Not sure yet? Leave these details blank and we’ll work through them together.
Have you considered…
Optional additions, priced for your project. Choose what would help your operation.
Your project, brought together.
Your greenhouse, growing systems and selected extras. Configured to your needs.
Keep this project moving.
Save the brief and download the budget as a PDF. Your private return link arrives by email. No account is needed.
Specific requirements?Let’s talk custom projects
More information
Everything to take this further
The complete document set for this model — engineering, pricing and drawings, the same files an engineer quotes from.
In the pack
The next details.
Build the project scope around the greenhouse you have selected.
Request drawings & pricingWhat does the quotation cover?+
Your quotation defines the hardware package, engineering scope and selected options. Freight, local assembly, foundations and site works need their own project allowances. Request the current price list and a scope for your location.
Can this model suit my crop?+
Expert and Plus start from hydroponic cultivation. Gutters, channels, benches and crop support are selected to suit the crop; the greenhouse size alone does not determine the growing system. The final design also considers climate and utilities.
What if I need another size or layout?+
Compare the other sizes in this series, or discuss a custom greenhouse. We can start from your production target, site and crop requirements.
How do we plan delivery and construction?+
We confirm the engineering, manufacturing, shipping and installation programme with your project quotation. Local approvals, site readiness and seasonal conditions form part of that programme.
