Steel structure
The greenhouse frame and service-building structure.
Included€137,500$159,884
GrowPro Expert · Hydroponic
Expert
1 acre
Approximately 4,050 m² greenhouseApproximately 43,500 sq ft greenhouseApproximately 4,650 square metres in total, including the service building.Approximately 50,500 square feet in total, including the service building.
Professional hydroponic horticulture. Higher gutter, supplementary lighting possible.
Starting price · greenhouse supply €502,500$584,302See what’s included ↗
Build my projectSpecific requirements?Let’s talk custom projects
Know the space.
Plan the operation.

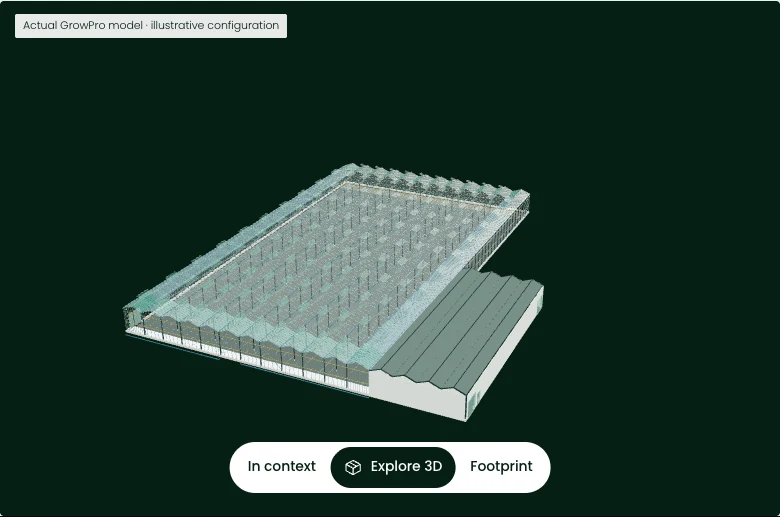

GrowPro Expert · DG-GPE-100ACFootprint study
Proportional footprint diagram. Service-building position is illustrative. Final layout follows project engineering.
View all technical dimensions +
- Growing area
- 4,032 m²43,400 sq ft
- Greenhouse width
- 48.0 m157 ft 6 in
- Greenhouse length
- 84.0 m275 ft 7 in
- Column height
- 4.8 m15 ft 9 in
- Ridge height
- 5.89 m19 ft 4 in
- Service width
- 16.0 m52 ft 6 in
- Service length
- 40.0 m131 ft 3 in
- Service area
- 640 m²6,889 sq ft
- Total covered area
- 4,672 m²50,289 sq ft
- Bay spacing
- 4.0 m13 ft 1 in
- Truss span
- 8.0 m26 ft 3 in
- Number of screens
- 1
- Cultivation
- Hydroponic
- Model code
- DG-GPE-100AC
Cross-section
What the structure is
6 truss spans of 8.00 m across a length of 21 bays. Every figure on this page derives from those two counts.
Dimensions & specifications
Measured, not estimated
| Greenhouse | MetricImperial |
|---|---|
| Length | 84.0 m275 ft 7 in |
| Width | 48.0 m157 ft 6 in |
| Area | 4,032 m²43,400 sq ft |
| Gutter height | 4.8 m15 ft 9 in |
| Ridge height | 5.89 m19 ft 4 in |
| Number of screens | 1 |
| Snow load¹ | 350 N/m²7.31 psf |
| Crop load | 150 N/m²3.13 psf |
| Wind speed² | 29.5 m/s66 mph |
| Service building | MetricImperial |
|---|---|
| Length | 40.0 m131 ft 3 in |
| Width | 16.0 m52 ft 6 in |
| Area | 640 m²6,889 sq ft |
| Total covered | 4,672 m²50,289 sq ft |
¹ In heavy snow areas snow-melt heating is applied. ² Reduction factors apply.
Included in
your core & shell.
The greenhouse and service building, ready for your choice of growing equipment.
Greenhouse supply · starting from €502,500$584,302
Aluminium glazing system
Profiles, gutters and fittings for the greenhouse.
Included€155,000$180,233
Roof ventilation
Opening roof vents and their drive mechanisms.
Included€20,000$23,256
Roof glass and walls
Greenhouse glazing and service-building panels.
Included€142,500$165,698
Screen installation
An energy screen in every range, with a second screen in Plus.
Included€27,500$31,977
Rainwater discharge
Downpipes and collectors to take rainwater away from the roof.
Included€5,000$5,814
Standard doors
Access to the greenhouse and service building.
Included€15,000$17,442
Steel, aluminium, roof glass and walls, ventilation, screens, rainwater discharge and standard doors. Service-building shell included. Ex works. Growing equipment, freight, foundations, installation, taxes and duties are excluded. The price applies to the stated standard supply scope. Site-specific changes are quoted separately. USD is a conversion of the EUR price.
Choose your growing equipment ↗From a possibility to a plan
Take your greenhouse
to the next conversation.
Keep a project overview for your partners and advisers, with a private link to return to your choices.
- Model overview and saved choices
- Your private project link by email
Your GrowPro project
A greenhouse.
Built around your crop.
Choose your crop, find your greenhouse and build a budget around your plans.
Specific requirements?Let’s talk custom projects
What would you like to grow?
Choose the crop you plan to produce.
Growing lettuce, herbs or another crop? We’ll help you choose the growing system.
Where will the crop grow?
Find your plot on the map. The location helps us plan the right growing environment.
Search uses OpenStreetMap. A search result is not a confirmed plot.
Loads OpenStreetMap tiles. Coordinates can also be entered below.
Your exact plot stays in the private brief. You decide whether to include it in a shared version.
Plan for your local climate.
Your local weather and growing season help determine heating, cooling and light.
Climate planningA growing environment.
A growing environment.
Shaped around your site.
Together, we’ll match heating, cooling and moisture control to your crop and growing season. We’ll check the design for your location before the final quotation.
Explore your greenhouse and build a starting budget. Your site details stay with the project, ready for our team to fine-tune the equipment with you.
Why a climate review matters
Cold periods, heat, humidity, light, water and power can change the equipment needed. A greenhouse in a hot, humid location needs a different climate system from one with cold winters.
Choose your growing space.
Choose the growing area that fits your plans. Every model includes a service building.
Need another size? Let’s talk custom projects.
Bring the growing systems together.
Choose the growing equipment for your crop.
Make the systems work together.
Connect the equipment that keeps the greenhouse running.
Not sure yet? Leave these details blank and we’ll work through them together.
Have you considered…
Optional additions, priced for your project. Choose what would help your operation.
Your project, brought together.
Your greenhouse, growing systems and selected extras. Configured to your needs.
Keep this project moving.
Save the brief and download the budget as a PDF. Your private return link arrives by email. No account is needed.
Specific requirements?Let’s talk custom projects
The next details.
Build the project scope around the greenhouse you have selected.
Request drawings & pricingWhat does the quotation cover?+
Your quotation defines the hardware package, engineering scope and selected options. Freight, local assembly, foundations and site works need their own project allowances. Request the current price list and a scope for your location.
Can this model suit my crop?+
Expert and Plus start from hydroponic cultivation. Gutters, channels, benches and crop support are selected to suit the crop; the greenhouse size alone does not determine the growing system. The final design also considers climate and utilities.
What if I need another size or layout?+
Compare the other sizes in this series, or discuss a custom greenhouse. We can start from your production target, site and crop requirements.
How do we plan delivery and construction?+
We confirm the engineering, manufacturing, shipping and installation programme with your project quotation. Local approvals, site readiness and seasonal conditions form part of that programme.
